Designs

Are you in need of cardboard packaging but not sure where to start? That is perfectly fine as we are here to help. We have hundreds of standard designs available in our CAD library, but that's just a starting point. We will configure the design for the required dimensions and board allowances and can even make any alteration to the standard designs or even come up with something totally unique just for you.

The common packaging designs are generally derived from two common libraries

  • FEFCO for corrugated

  • ECMA for folding cartons



Here's a helpful guide to assist you in identifying the most common packaging designs.

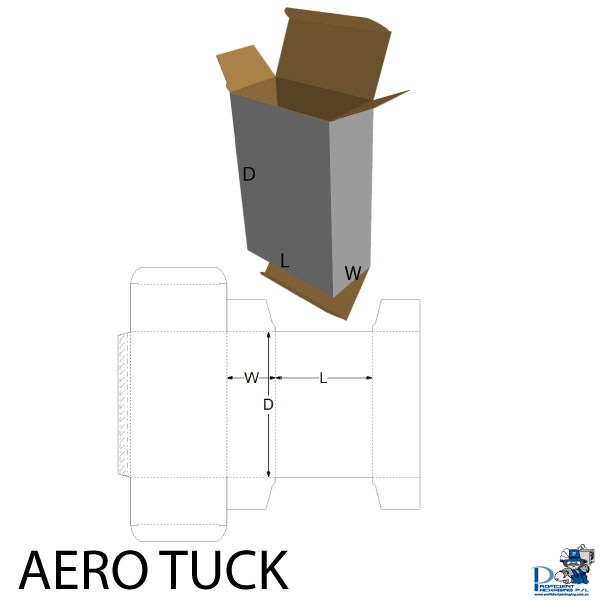

TIT&B : Tuck In Top & Bottom (Aero Tuck)

Category:
Corrugated, Folding Carton
SKU:

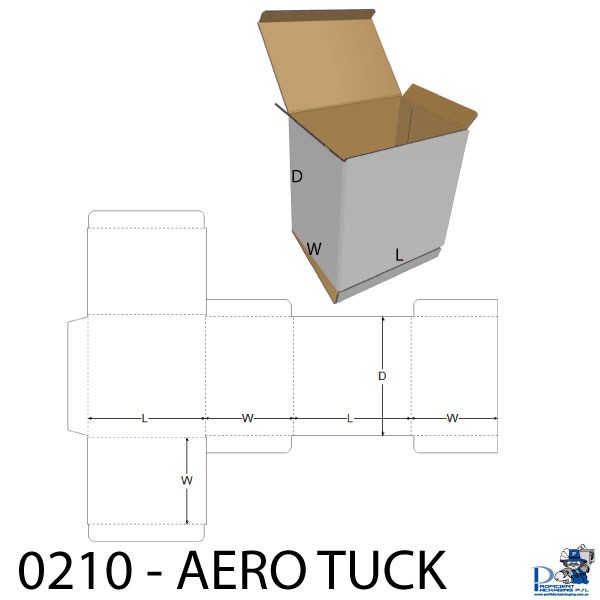

FEFCO 0210 / ECMA - A20.20.01.01
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

An Aero Tuck Carton (AERO) has top and bottom flaps that tuck into the same side main panel.



An alternative to the Reverse Tuck Carton, hinging the top and bottom flaps on the same main panel enables creased edges on all 4 sides one of the main panels to provide a cleaner appearance with no exposed cut edges.



These are a die-cut carton where unique tooling (a cutting forme) needs to be manufactured in order to produce the cartons. The design can be stepped out on the cutting forme to facilitate multiple cartons to be cut with each impresson to speed up production.



Options:

  • Suited to lighter corrugated board grades or all solid- fibre / folding carton stocks
  • Can be flexo printed or litho-laminated (corrugated boards) or lithographic printed (folding carton stocks)
  • Design can be customised to suit requirements prior to tooling manufacture (such as thumb holes or locking tabs).
Feel free to contact us and we'll be happy to come up with the perfect design for you.
